UL Certified Panel Shop

UL-certified control panels built for oilfield automation, municipal utilities, industrial systems, and long-term field reliability.

Talk With Our Team

Control panels are the brain of industrial, municipal, and oilfield systems. When panels are poorly built, undocumented, difficult to troubleshoot, or not properly certified, operations can face downtime, startup delays, safety concerns, audit issues, and long-term maintenance problems.

DSI builds UL-certified industrial control panels engineered for demanding environments and real field conditions. Our UL 508A panel shops in Sioux Falls, South Dakota, and Midland, Texas, work directly with DSI automation, electrical construction, fabrication, engineering, and field service teams, and our Sioux Falls shop also builds UL 698A panels.

That means customers get panels that are not only built correctly in the shop, but also designed to install, program, commission, and operate reliably in the field.

Two UL 508A Panel Shops: Sioux Falls and Midland

DSI runs two UL 508A listed panel shops, one in Sioux Falls, South Dakota, and one in Midland, Texas. Both shops build hazardous location panels for Class I Division 2 sites. The Sioux Falls shop also holds UL 698A, so panels that need the UL 698A label are built there.

Sioux Falls, SD

  • UL 508A and UL 698A listed
  • About 27,000 sq ft facility
  • About 20,000 sq ft of working space
  • Serving municipal, industrial, and infrastructure customers

Midland, TX

  • UL 508A listed
  • Hazardous location panels for oilfield sites
  • Serving producers across West Texas and southeastern New Mexico

Both Shops

  • Class I Division 2 panel builds
  • Wire labeling and full documentation
  • Factory acceptance testing before shipment
  • Support from DSI automation, electrical, and field teams

UL 698A Panels for Hazardous Locations

DSI’s UL-certified panel shop builds UL 698A control panels for hazardous locations, including Class I Division 2 oil and gas sites where flammable gas can be present during a leak or other abnormal condition. UL 698A does not replace UL 508A. Every UL 698A panel is first built to UL 508A, then to the additional hazardous location requirements on top of it.

Those requirements shape the whole build:

  • Every component UL listed or recognized, down to the conduit fittings
  • Enclosure, spacing, and layout that manage heat and ignition risk
  • Class, division, group, and temperature code on the UL label
  • Wire labels at both ends, control drawings, and full documentation
  • Factory acceptance testing before the panel ships

UL inspectors visit our shops on a regular schedule to keep that certification, so the UL label on a DSI panel means it was built and checked to the standard.

Learn more: how UL 698A changes the way a control panel is designed and built, what Class 1 Division 2 means and what it requires, and what makes a hazardous location control panel safe.

Control Panels by Industry

DSI builds control panels around the realities of your operation. Explore panel shop capabilities by industry:

Oil and gas control panels

Oil & Gas Panel Shop

Well pads, production facilities, pump systems, VFDs, MCCs, SCADA-connected assets, RTUs, PLCs, hazardous locations, and repeat-build oilfield panel programs.

Explore Oil & Gas Panel Shop

Industrial processing and manufacturing control panels

Industrial Processing & Manufacturing Panel Shop

Production equipment, process systems, PLCs, HMIs, VFDs, motor controls, instrumentation, SCADA systems, and plant modernization projects.

Explore Industrial Panel Shop

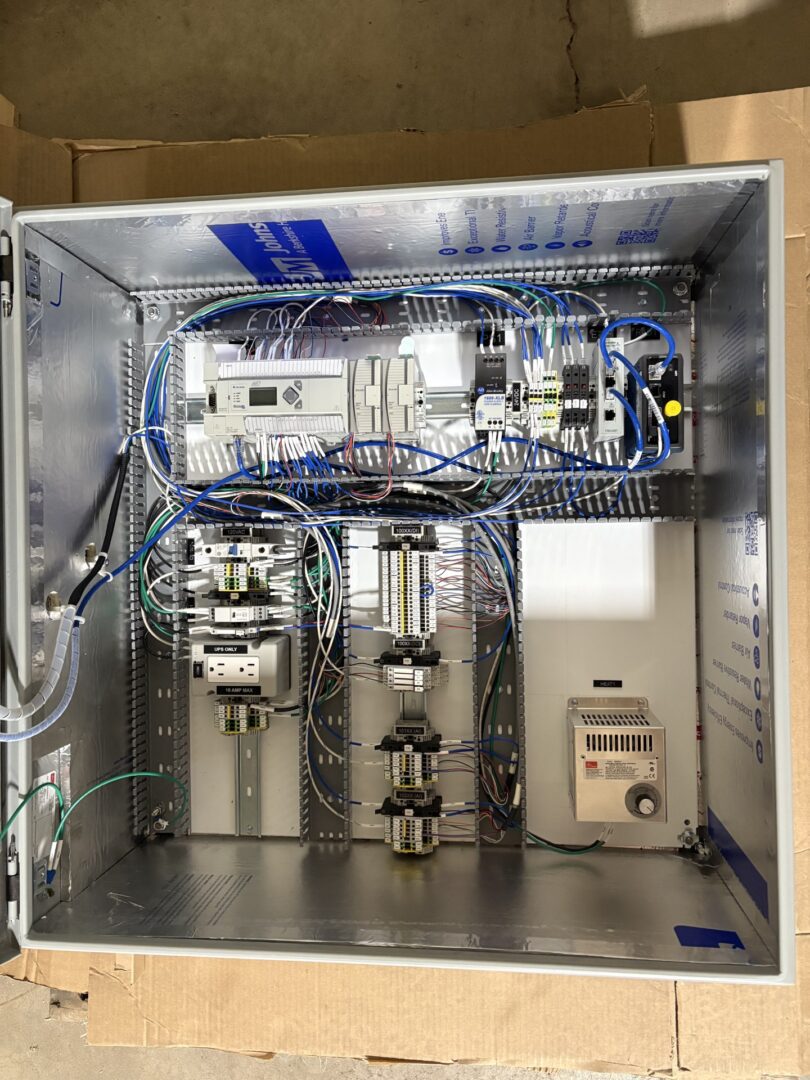

Municipal water and wastewater control panels

Municipal Water & Wastewater Panel Shop

Water and wastewater treatment plants, lift stations, pump stations, RTUs, SCADA systems, VFDs, MCCs, alarms, and instrumentation.

Explore Municipal Panel Shop

When operations depend on control panels, failure is not an option

When Operations Depend on Control Panels, Failure Is Not an Option

In oilfields, municipal utilities, and industrial plants, control panels connect equipment, operators, controls, power, instrumentation, and automation systems.

Poorly built panels can cause:

  • Unexpected downtime
  • Costly troubleshooting
  • Field installation delays
  • Startup and commissioning problems
  • Safety hazards in demanding environments
  • Documentation gaps during audits or inspections
  • Difficult long-term maintenance
  • Vendor confusion when problems appear

DSI understands what is at stake. Control panels must work every time, in every condition, and must be built to the standards the application demands.

Your UL certified panel shop with industrial field experience

Your UL Certified Panel Shop with Industrial Field Experience

DSI’s two UL-certified panel shops build UL 508A industrial control panels, plus UL 698A panels from Sioux Falls, for oil and gas producers, municipal water systems, industrial processing facilities, manufacturing environments, and other demanding applications.

Our panel shop is led by experienced technicians and supervisors who maintain strict compliance with UL requirements. Every panel is built around documented standards, proper components, wire labeling, inspection readiness, and field reliability.

DSI builds panels with attention to:

  • UL certification requirements
  • Proper component selection
  • Wire labeling and routing
  • Spacing, heat, and airflow
  • Torque and termination quality
  • Documentation and drawings
  • Field installation requirements
  • Long-term troubleshooting and maintenance

More Than 1,150 UL 508A Panels Since 2022

DSI has built more than 1,150 UL 508A labeled panels since the start of 2022, and that count does not include the Class I Division 2 panels we build on top of it. Every one was built to schematic, labeled, tested, and documented before it shipped.

UL 508A panels built: 297 in 2022, 204 in 2023, 232 in 2024, 265 in 2025, and 156 so far in 2026.

We have open shop capacity today, so new work does not wait behind a backlog. Whether you need one engineered panel or a repeat-build program for dozens of well pads or lift stations, we can take it on.

What you get with DSI

What You Get with DSI

The strength of a UL-certified panel shop, backed by full engineering and field services.

DSI is not just a panel shop. We offer design, fabrication, automation, electrical construction, and field installation support under one roof. That integrated model helps reduce delays, miscommunication, and field surprises, because panels can be designed, built, programmed, installed, commissioned, and supported by teams that work together.

With DSI, customers get:

  • UL-certified panel craftsmanship
  • Panel shop technicians who follow strict schematics and UL guidelines
  • Engineering support for layouts, spacing, heat load, and documentation
  • Automation engineers who program and test the full system
  • Electrical teams that install and integrate the panels
  • Fabrication support for mounts, frames, skids, and supports
  • Shop-floor leadership focused on consistency and workmanship
  • Field service support for startup, troubleshooting, and long-term operation

How We Build Panels

The DSI panel shop process: built right, tested right, shipped right.

As a UL-certified panel shop, DSI builds control panels for real industrial environments where safety, consistency, documentation, and reliability matter. Each project begins with coordination between engineering, automation, panel shop, electrical, fabrication, and field teams.

Before shipment, every panel is tested to verify performance, safety, and compliance, helping reduce startup issues and field risk.

Design and component planning

1. Design and Component Planning

Every panel build begins with design, component planning, layout review, and documentation.

DSI’s controls engineers design and engineer many of the panels we build in house. When a customer provides their own drawings, we build to that set and return redlined drawings that show any changes made during the build, so the documentation matches the panel in the field.

DSI considers:

  • UL listed or recognized components
  • Application requirements
  • Electrical schematics
  • Heat, airflow, and clearances
  • Spacing requirements
  • Enclosure requirements
  • Field installation needs
  • Maintenance access
  • Component documentation

If a panel requires UL certification, the component selection and build process must support that requirement from the start.

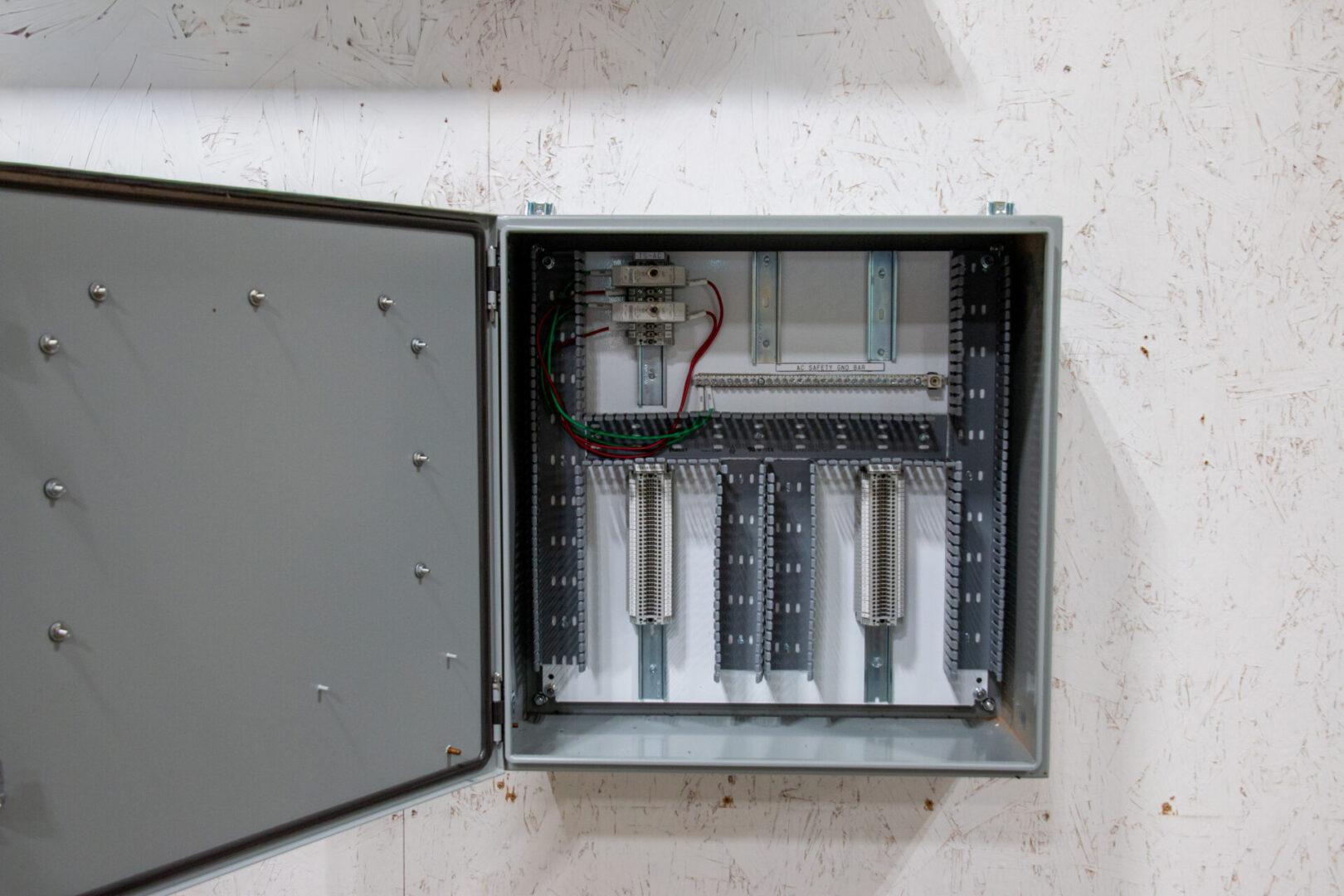

Panel fabrication

2. Panel Fabrication

DSI’s panel shop technicians assemble panels with clean layouts, practical wiring paths, and serviceability in mind.

Panel fabrication can include:

  • Back panel preparation
  • DIN rail installation
  • Wireway installation
  • Terminal block installation
  • Power supply mounting
  • PLC and control hardware mounting
  • HMI and operator interface cutouts
  • Pushbutton and selector switch installation
  • Conduit entry planning
  • Enclosure modifications

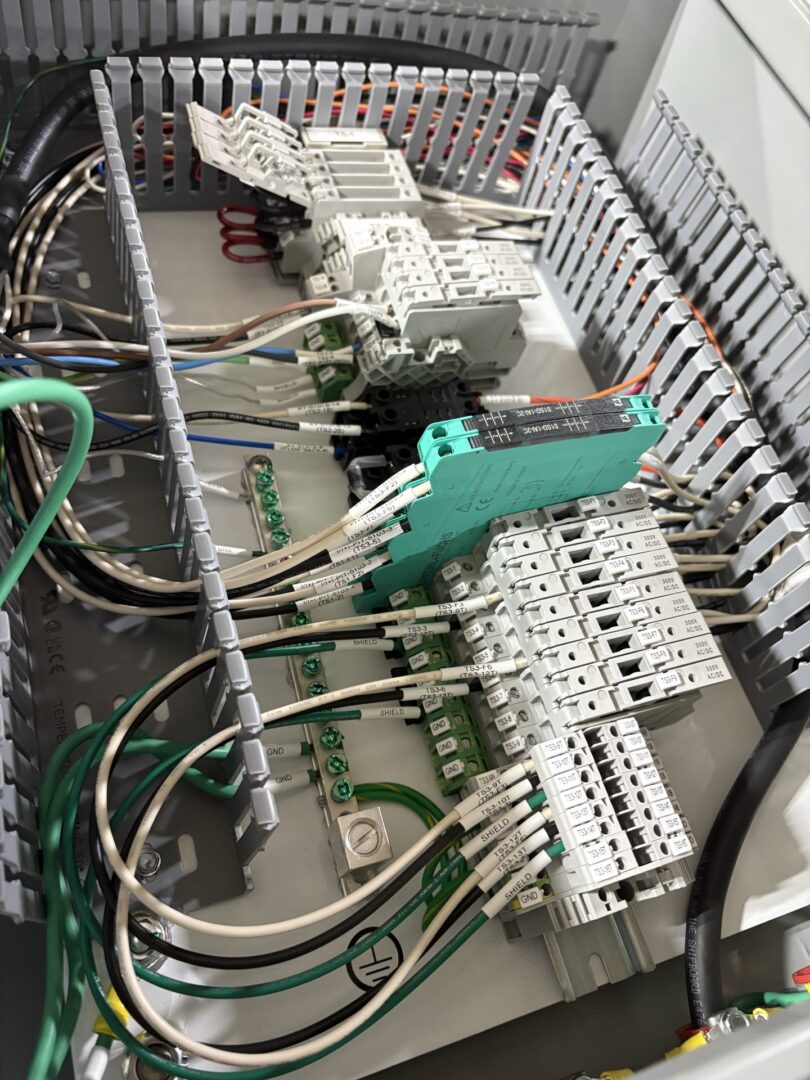

Wiring and labeling

3. Wiring and Labeling

Clear wiring and labeling are essential for field installation, troubleshooting, and long-term maintenance.

DSI supports:

  • Wire labeling on both ends
  • Origin and destination labeling
  • Clean wire routing
  • Proper terminations
  • Torque verification
  • UL wiring requirements
  • Spacing compliance
  • Field service readability
  • Maintenance-friendly organization

Good labeling helps reduce field mistakes and makes the panel easier to support years later.

Factory acceptance testing

4. Factory Acceptance Testing

Panels are tested before shipment to identify and correct issues before the panel reaches the field.

The panel shop runs factory acceptance testing, powered testing, and customer witness testing up to 120 volts. When a panel needs to be tested at higher voltage, our North Dakota division can test up to 480 volts before it ships.

Testing can include:

  • Power-on testing
  • Wiring verification
  • Component checks
  • Control circuit checks
  • I/O verification support
  • FAT documentation
  • Issue correction before shipment
  • UL label application when requirements are met

See Our Projects

Documentation and shipping

5. Documentation and Shipping

Every panel should ship with the documentation needed for installation, support, and long-term maintenance.

Panel documentation can include:

  • UL certification details
  • Component documentation
  • Corrected or redlined drawings
  • Factory acceptance testing results
  • Field installation drawings
  • Wiring documentation
  • Panel layout documentation
  • Support information

Panel Shop Capabilities

DSI builds panels for demanding industrial, municipal, and oilfield environments.

UL508A Control Panels

  • Industrial control panels
  • PLC control panels
  • HMI panels
  • Pump control panels
  • Motor control panels
  • VFD panels
  • MCC-related controls
  • SCADA interface panels
  • Automation cabinets

UL698A and Hazardous Location Panels

  • Hazardous location control panels
  • Class I Div 2 applications
  • Oilfield hazardous area support
  • Proper component selection
  • UL documentation
  • Safety-focused design
  • Inspection-ready builds
  • Field reliability

Common Panel Types

  • Pump control panels
  • PLC control panels
  • SCADA interface panels
  • Motor control panels
  • Automation control cabinets
  • ITBC/CTP wellhead control boxes
  • Municipal water treatment panels
  • Lift station panels
  • VFD pump control panels
  • Industrial process control panels
  • Custom equipment panels
  • Repeat-build panel programs

How Big a Panel Can DSI Build?

DSI does not put a size limit on the panels we build. If the panel can be built, we can build it. The largest so far has been an enclosure about 24 feet long and 30 inches wide, fitted with multiple back panels.

Power and Controls

  • VFD panels built up to 150 HP
  • Authorized under UL standards to build panels up to 1,000 volts
  • Certified on Allen-Bradley
  • Authorized to work with virtually every major drive and controls brand

Enclosure Ratings

  • NEMA 1
  • NEMA 3R
  • NEMA 4 and 4X
  • NEMA 12
  • Other ratings built to the application

Moving Heavy Panels

  • Gantry system with a 1,000 lb rated electric hoist
  • Two forklifts with about 12,000 lb of combined lifting capacity
  • Skid steer that lifts about 2,000 lb
  • Rental equipment brought in for larger loads

Panels that perform in the field, not just on the shop floor

Why Choose DSI

Panels that perform in the field, not just on the shop floor.

With DSI, customers get the quality of a UL-certified panel shop backed by the practical support of a full integrated services team.

Customers choose DSI for:

  • UL-certified craftsmanship
  • Experienced technicians and shop supervisors
  • Faster coordination between teams
  • Panels built for harsh environments
  • Support from automation and electrical experts
  • Fabrication support for mounts and skids
  • Field service experience
  • Factory acceptance testing
  • Complete documentation
  • A partner who stands behind the work

Where We Work

Midland / Odessa Region

Supporting oilfield producers and industrial customers across West Texas and southeastern New Mexico.

Western North Dakota

Supporting operators across the Williston Basin and Bakken.

South Dakota Operations

Supporting municipal, industrial, and infrastructure customers across the region.

Nationwide Project Support

DSI supports projects across the United States as customer needs arise.

Frequently Asked Panel Shop Questions

What does it mean that DSI is a UL-certified panel shop?
It means DSI builds industrial control panels according to UL requirements, inspection standards, and documented safety practices for applicable panel types.
What is the difference between UL508A and UL698A panels?
UL508A applies to industrial control panels. UL698A applies to panels associated with hazardous location applications where additional safety requirements apply.
What types of control panels does DSI build?
DSI builds PLC panels, HMI panels, VFD panels, pump control panels, motor control panels, SCADA interface panels, RTU panels, lift station panels, oilfield panels, and custom industrial control panels.
Can DSI build panels for hazardous environments?
Yes. Both DSI panel shops build hazardous location panels, including Class I Division 2 applications. Panels that need the UL 698A label are built at our Sioux Falls shop, which holds UL 698A.
How does DSI ensure quality in panel manufacturing?
DSI uses documented build practices, proper components, wire labeling, torque checks, inspection processes, factory acceptance testing, and UL compliance procedures.
What is Factory Acceptance Testing?
Factory acceptance testing verifies panel wiring, components, controls, and function before the panel ships to the field. DSI runs FAT, powered testing, and customer witness testing up to 120 volts in the panel shop, and our North Dakota division can test up to 480 volts.
What documentation is included with a DSI control panel?
Documentation can include UL certification details, component documentation, corrected drawings, FAT results, wiring information, and field installation drawings.
How does the panel shop work with DSI automation and electrical teams?
The panel shop coordinates with automation and electrical teams so panels match the control design, field wiring, installation needs, commissioning plan, and long-term support requirements.
Where are DSI’s panel shops located?
DSI has two UL 508A listed panel shops, one in Sioux Falls, South Dakota, and one in Midland, Texas. Both build hazardous location panels, and the Sioux Falls shop also builds UL 698A labeled panels. We ship panels to projects across the United States.
How many panels does DSI build each year?
DSI has built more than 1,150 UL 508A labeled panels since 2022, including 265 in 2025. That count does not include the Class I Division 2 panels we also build. We have open capacity today for single builds and repeat-build programs.
What is the largest control panel DSI can build?
There is no set size limit. If the panel can be built, we can build it. Our largest so far is an enclosure about 24 feet long and 30 inches wide with multiple back panels. We lift and move panels with a 1,000 lb gantry hoist, forklifts, a skid steer, and rented equipment for larger loads.
What horsepower and voltage can DSI build VFD panels for?
DSI has built VFD panels up to 150 HP and is authorized under UL standards to build panels up to 1,000 volts.
What NEMA enclosure ratings does DSI build?
DSI builds panels in NEMA 1, 3R, 4, 4X, and 12 enclosures, and other ratings on request based on the application and site conditions.
Can DSI build a panel from our drawings?
Yes. DSI designs and engineers many of the panels we build, and we also build to customer-provided drawings. When we build to your set, we return redlined drawings that show any changes made during the build.
What VFD and controls brands does DSI work with?
DSI is certified on Allen-Bradley and authorized to work with virtually every major drive and controls brand. We build around the equipment your team already supports.

UL Certified. Integrated. Accountable.

Get a UL Certified Panel That Performs in the Field

Whether you need one engineered control panel or hundreds for repeat deployment, DSI delivers UL-certified panel building, testing, documentation, and reliability you can count on.

Talk to Our Panel Shop TeamView Our Projects

100% Employee-Owned  |  25+ Years in the Field  |  2 UL-Certified Panel Shops  |  1,150+ UL 508A Panels Since 2022  |  ASME R Stamp Welding Certification  |  6 Locations  |  Serving Oil & Gas, Industrial, and Municipal Customers
